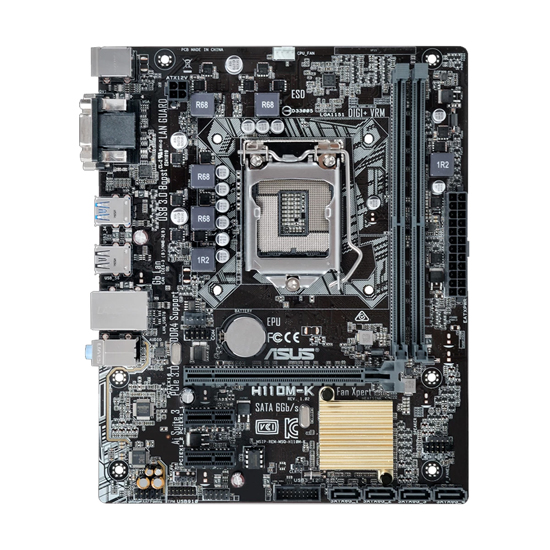

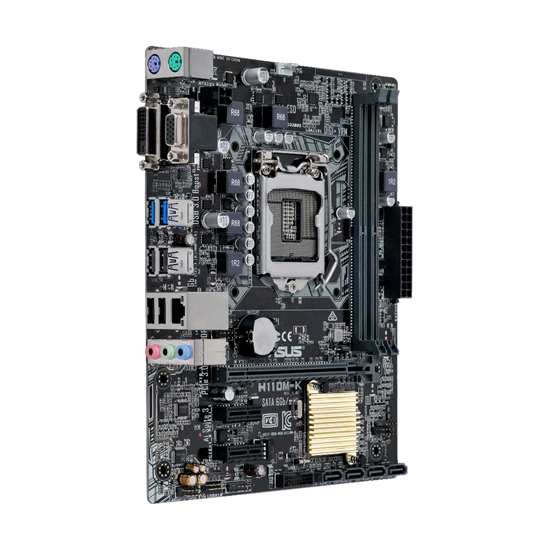

Asus H110M-K Intel Motherboard

Asus H110M-K Intel Motherboard

Model: H110M-K

Reviews: No reviews yet

Price: 10,300.00৳

Regular Price: 11,200.00৳

Save: 900.00৳

Key Features:

  • Body Color: Black
  • Memory Type: DDR4
  • Memory Max.: 32GB
  • Approx Power Consumption: 65W
  • Warranty: 3 Years

Specifications

Physical Specification

Body Color Black
Form Factor Micro-ATX

CPU

Chipset Brand Intel
Chipset Intel H110
Sockets Supported LGA1151
Supported CPU 6th/7th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors
Generation 6th/7th

Memory

Memory Type DDR4
Memory MHz 2133/2400MHz
Memory Channel Dual
Memory Slot 2
Memory Slot (Additional Info) Supports Intel Extreme Memory Profile (XMP), Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Memory Max. 32GB
Memory Max. (Additional Info) 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Storage

Storage Interface 6.0Gb/s

Graphics

Graphics Integrated
Graphics Chipset Intel HD Graphics support
PCI Express Slot 1 x PCI Express 3.0/2.0 x16 (x16 mode, gray)

Audio Sound & Microphone

Audio Chipset Realtek ALC887
Audio Channel 8

Networking & Connectivity

LAN Chipset Realtek RTL8111H

Ports & Slots

USB Port 4 x USB3.0/2.0, 6 x USB2.0/1.1
VGA Port 1
DVI Port 1
SATA Port 4 x SATA
TPM Port Yes

Technical Info

Cable Management Front

Power Type

Approx Power Consumption 65W

Bios Information

BIOS Type 1 x 128 Mb Flash ROM
BIOS Model UEFI AMI BIOS
BIOS Version PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0

Compatibility

Supported Operating System Windows 7 / 8.1 / 10
Compatible Products LGA1151 Socket 7th/6th Generation Core™ i7/ i5/ i3/Pentium/Celeron Processors.

Warranty Information

Warranty 3 Years

Description

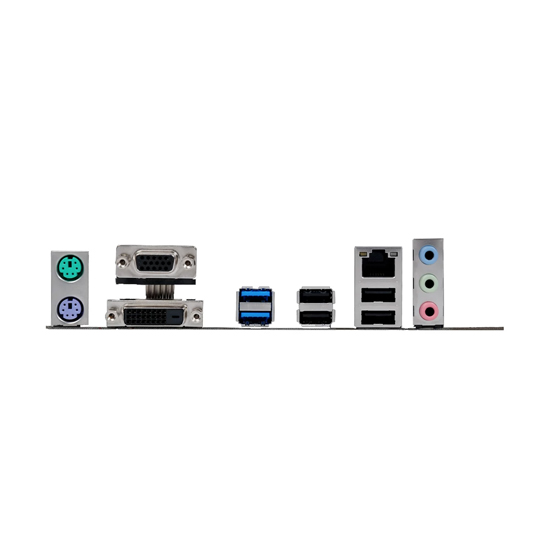

The ASUS H110M-K Intel Motherboard is designed for both and use. It supports Intel 6th Generation Core i7,5, i3, Pentium, and Celeron processors with the Intel H110 chipset and LGA 1151 socket. The motherboard features dual-channel DDR4 memory support, allowing speeds of to 2133 MHz and accommodating up to 32GB of RAM across two memory slots. For storage, provides four SATA 6Gb/s ports and M.2 slot (Socket 3, M, type 0 offering ample options both traditional and modern storage solutions. Network connectivity is ensured by Realtek RTL8111 Gigabit, which smooth stable internet performance. The audio experience is enhanced by the Realtek ALC897 Audio Codec, delivering high-quality for entertainment needs. The back panel I ports include one VGA port, one HDMI port, two USB 3.0 ports, four USB 2.0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities consist of one PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot, allowing for additional hardware components. With its micro-ATX form factor (23.0 cm x 21.5 cm), the motherboard is ideal for compact PC builds and includes six mounting holes for secure installation. It is backed by a three-year warranty, providing reliability and peace of mind.
